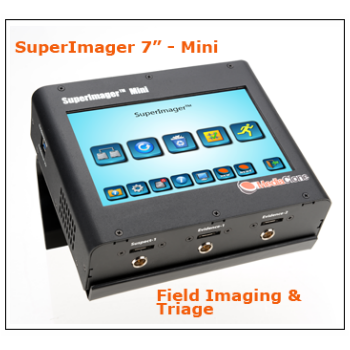

SuperImager™ 7" Mini - Triage & Forensic Imager

SuperImager™ 7" Mini - Field Forensic Imaging and Platform. The unit can be used as a Forensic Imager, Cellphone data extraction and analysis, and Triage data collection. It is affordable and very handy unit, capable of performing extremely fast Forensic Imaging (Run SHA-1 hash authenticition1 @ 30GB/min with use of Solid State Drive(SSD), 10GB/min with use of 1TB WD Blue Hard Disk Drive). The Unit built-in with 7" touchscreen color LCD display, 3 SATA ports(with secure and keyed SATA power connector), 4 USB3.0 ports, one Gigabit Ethernet, and one VGA port. The unit is very small, lightweight, and easy to carry. It is the perfect Forensic Imaging tool to perform out in the field. The SuperImager™ application has the capabilities to preform in on e read pass from the "Suspect" hard disk drive are: Forensic Imaging with E01 compressed, Encryption AES256, 3 parallel Hash (MD5, SHA1, SHA2), a simple binary keyword search, and the ability to save Forensic Images to 2 external Hard Disk Drives, External USB3.0 RAID storage device, and to a local Network.
As a field platform, Forensic investigator can load and run a third-party applications like Celebrite, Oxygen, BlackBag, or it can run a Triage application like Nuix, Encase, MPE+. All of which is done with excellent performance. External Compact Battery Option is available: User can complete Forensic Imaging of WD 1TB hard disk drives (1:2) for around 2h, or performs a cellphone extraction and analysis for around 5h.

Features

• Case: Mobile, very small, lightweight, and easy to carry.
• Display: 7 inch (1280X800) LED back-light color LCD display with Touchscreen.
• Secure DC-in connector: Keyed and Locked DC-In connector to avoid accidental disconnect in the middle of operation.
• Speed: Externally fast, even with SHA-1- can run 30GB/min with Sold State Drive(SSD) and 10GB/min with 1TB WD Blue SATA-3 Hard Disk Drive.
• GUI: The application is built with large and simple icons and is easy to navigate.
• Writes Block: Low level blocking mechanism for the device's drives and hardware.
• Hash: Simultaneously Hash MD5/SHA-1/SHA-2.
• Encryption: On-the-fly AES256 encryption of the "Suspect" Hard Disk Drive, and the encrypted data is saved on "Evidence" Hard Disk Driven 100%, DD E01/Ex01 formats.
• Keyword Search: A rapid binary keyword binary search on the “Suspect” Hard Disk Drive (Not a Unicode match).
• Forensic Images can be saved in those Formats: 100% Bit by Bit, Linux DD Format, Encase E01/Ex01 formats include option for optimized compression (With very little speed degradation).
• Forensic Images Destination: Forensic Images can be saved to a local Network shared folder for easy access and analysis.
• Network Capture: Data from network folders can be captured via iSCSI protocols.
• Captured Interfaces: SATA, e-SATA enclosures, IDE, USB 2.0, USB 3.0
• Storage Devices Form Factors: 3.5 inch, 2.5 inch, ZIF, 1.8Inch, Micro-SATA, and Mini-SATA.
• File Preview: Browse and preview captured data on the Internal Display by mounting the Hard Disk Drive under Windows and then using the Windows Explorer application or any other third-party viewing applications.
• OS: Windows Embedded Standard 7 platform allows the running of other applications including cell phone acquisition software in parallel with a capture operation and other Forensic analyses applications like Encase, Nuix, and FTK.
• Cross Ports Copy: User can choose to capture from one type of Storage interface port and save the Forensic Images into a different kind of Storage interfaces. Cross copy data can be between SAS/SATA/IDE and USB interfaces.
• Capture Data from the Internal Hard Disk Drive of a Computer: Data is captured via USB or Gigabit Ethernet ports of the laptop/computer, without the need to disassemble the laptop/computer unit.
• Parallel Forensic Imaging: Modes 1:1, 1:2, simultaneously.
• Erase Hard Disk Drives: Use DOD 5220-22M, Secure Erase, or define your own pattern and numbers of iterations.
• Quick Format Hard Disk Drives: Support FAT32, and exFAT.
• Multi-Session operation: The SuperImager application can performs those function at the same time: Forensic Imaging, Restore, Hash verification, and Hard Disk Drive Erase. It is all depends on the availability of ports. There are no limitations on the number of running sessions.
• Hardware: A very high preforming component with military specifications. The unit is assembled and tested in the US.
• Optional External Compact Battery: 10AH 12V Li-Polymer external battery with charger; User can complete Forensic Imaging of WD 1TB hard disk drives (3 drives with 1:2 operation) for around 2h, or performs a cellphone extraction and analysis for around 5h.
• Platform: The unit has high performance when running a third-party application: Cellphone and Tablets data extraction such as Cellebrite/BlackBag/MPE+/Oxygen/Paraben, or Triage applications such as Nuix/Encase.
