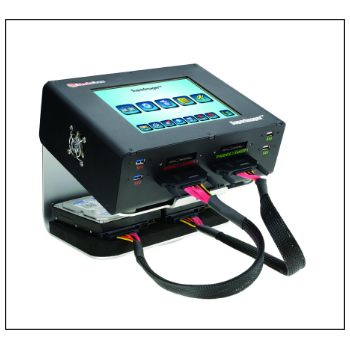

SuperImager™ 8" Field Unit - Forensic Imager with i7 & HDMI ports

Dostępny powyżej tygodnia
W magazynie: Dostępny (100 szt.)

SuperImager™ 8" Field Unit - Forensic Imager with i7 & HDMI ports

SuperImager™ Forensic Field 8" SAS/USB3.0 i7 Edition unit. Extremely fast Forensic Imaging (Hash SHA-1 31GB/min with Solid State Drive(SSD), 10GB/min with 1TB WD Hard Disk Drives) and a field Triage platform unit. Built-in Touchscreen 8" color LCD display, 4 SAS/SATA-3 ports, 6 USB3.0 ports, 1Gigabit Ethernet port, e-SATA port, two HDMI display ports(one in and one out), and 5 Audio Ports (Express Card Port or Expansion Port are optional).
In one read pass from the "Suspect" Hard Disk Drive, the SuperImager™ application can achieve, Forensic Imaging with E01 compressed, Encryption AES256, 3 parallel Hash Authentication(MD5, SHA1, SHA2), basic keyword search, and save Forensic Images to 3 external Hard Disk Drives and to a local Network. (Stand is not included)

Features

  • Case: Mobile, rugged, easy to carry.
  • Display: 8 inch (800X600) LED backlight color LCD display with Touchscreen.
  • Speed: Externally fast, even with SHA-1, can run 30GB/min with Solid State Drive and 10GB/min with 1TB WD Blue SATA-3 Hard Disk Drive.
  • Secure DC-in connection: Built with Keyed and Locked DC-in connection to avoid accidental disconnect in the middle of the operation.
  • GUI: The application is built with large icons and very simple and easy to navigate.
  • Writes Block: A low level blocking mechanism for both device drives and hardware.
  • Hash: On-the-fly simultaneously Hash MD5/SHA-1/SHA-2. (Hardware accelerated)
  • Encryption: On-the-fly AES256 encryption of the "Suspect" Hard Disk Drive and saves the encrypted data on "Evidence" Hard Disk Drive in 100%, DD E01/Ex01 formats.
  • Keyword Search: Instantaneous binary keyword search on the “Suspect” Hard Disk Drives (not a Unicode match).
  • Forensic Images can be saved in those Formats: 100% Bit by Bit, Linux DD Format, Encase E01/Ex01 formats include option for optimized compression (With very little speed degradation).
  • Forensic Images Destination: User can saves Images to a local network shared folder for easy access and analysis.
  • Network Capture: Data from network folder can be captured via iSCSi protocols.
  • Captured Interfaces: SAS, SATA, e-SATA enclosures, IDE, USB 2.0, USB 3.0, 1394, and SCSI.
  • Form Factors: Capture from various form factor devices: 3.5 inch, 2.5 inch, ZIF, 1.8Inch, Micro-SATA, Mini-SATA, PCIE, Mini-PCIE, M.2(NGFF).
  • File Preview: Browse and preview captured data on the Internal Display by mounting the Hard Disk Drive under Windows, and then using Windows Explorer or any other third-party view applications.
  • OS: Windows Embedded Standard 7 platform allows the running of other applications including cell phone acquisition software in parallel with a capture operation, and other Forensic analyses applications like Encase, Nuix, and FTK.
  • Cross Ports Copy: The user can choose to capture from one type of Storage interface and save the Forensic Images into a different Storage interfaces. Cross copy data can be between SAS/SATA/IDE and USB interfaces.
  • Capture Data from the Internal Hard Disk Drives of a Laptop: Captured via USB or Gigabit Ethernet ports of the laptop/computer without the need of disassembling the said unit.
  • Parallel Forensic Imaging: Modes 1:1, 1:2, 1:3, 2:2 simultaneously.
  • More Ports for Forensic Imaging:
  • With the use of USB 3.0 to SATA adapters and with the use of e-SATA port, the unit can support 2:7 imaging of SATA storage devices.
  • With the use of express port and Sonnet 4 SAS Express Card Adapter, unit can support 2:6 Forensic Imaging of SAS HDD.
  • Erase Hard Disk Drive: Use DOD 5220-22M, Secure Erase, or define your own pattern and numbers of iterations.
  • Quick Format HDD: Support NTFS, FAT32, and exFAT.
  • Multi-Session operation: The application can perform these functions at the same time: Forensic Imaging, Hash verification, and Hard Disk Erase. It is all depending on the availability of the ports. There is no limitations on the number of running sessions.
  • Hardware: Very high quality high preforming component with military specifications. The units are assembled and tested in the US.
  • Platform: The unit has high performance when running a third-party application: Cellphone and Tablets acquisition and analyses data with the use of application like Cellebrite/BlackBag/MPE+/Oxygen/Paraben. For a Triage application run Nuix/Encase.
  • Express Card Port Option: An optional port that needs to be installed at the time of purchasing of the main unit. This additional port gives the user the ability to plug and use a few kinds of Express Card adapters with different interfaces,and Express Card media. The user can also capture data from those additional new interfaces and devices. A dual port 1394A/B, PCIE memory (Sony SxS), Mini PCIE SSD (not supported by SATA protocol).
  • Expansion Port: An optional port that needs to be installed at the time of purchasing of the main unit. (The user can choose to configure the main unit with only one connectivity port: Express Card Port or Expansion Port). This additional expansion port gives the user the ability to plug and use Expansion Box with express card reader pre installed and ability to support capture of data from SCSI Hard Disk Drive (With the purchasing of the SCSI 2 Hard Disk Drives Option Kit).
