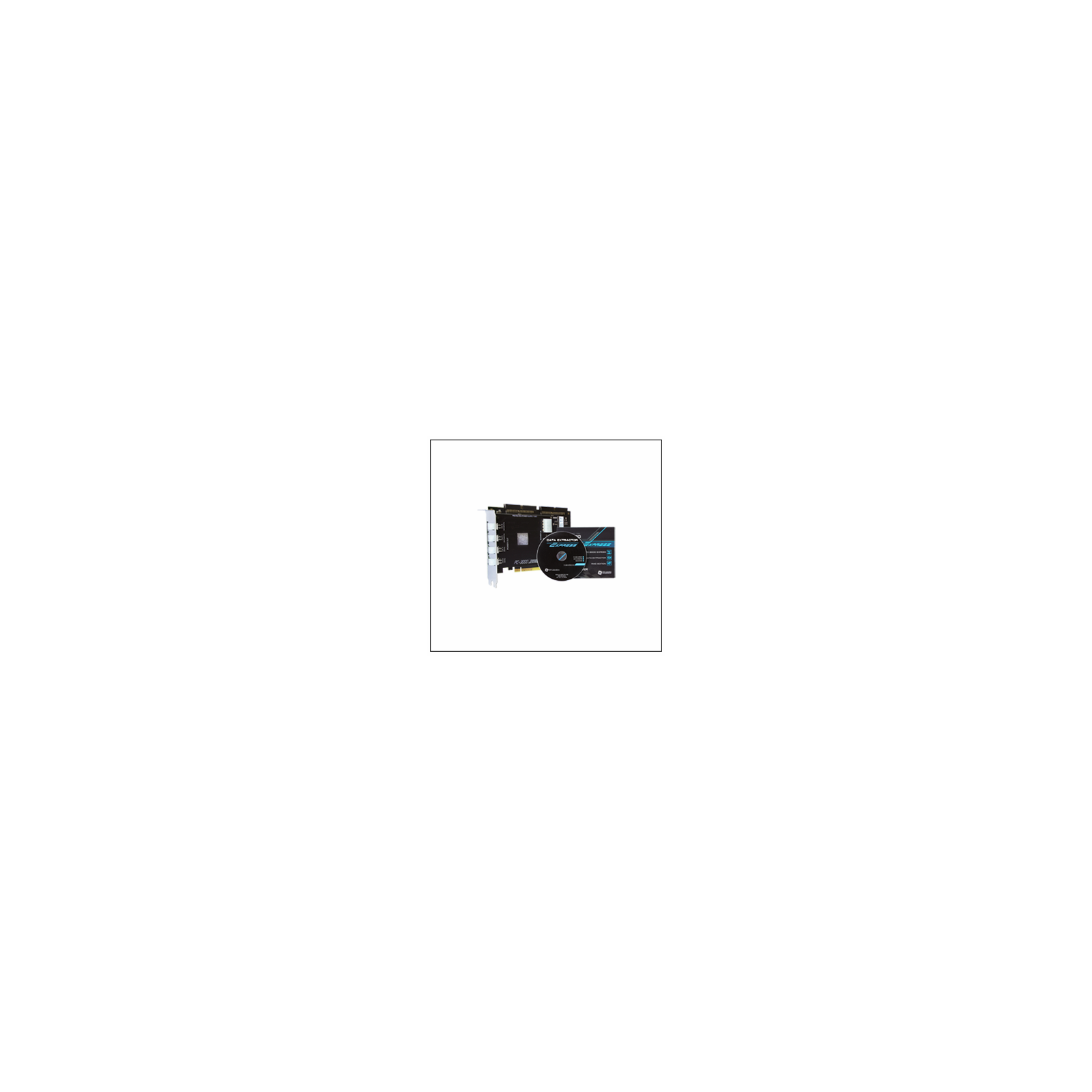

PC-3000 Express System

Dostępny powyżej tygodnia
W magazynie: Dostępny (100 szt.)

PC-3000 Express System

The PC-3000 Express is a hardware-software solution intended for diagnosing, repairing and recovering data from damaged HDDs based on SATA (Serial ATA) and PATA (IDE) interfaces for numerous vendors (Seagate, Western Digital, Fujitsu, Samsung, Maxtor, Quantum, IBM (HGST), HITACHI, TOSHIBA), for various capacities (from 500 MB to 6 TB) and various form factors: 3.5" - desktop drives, 2.5" and 1.8" - laptop drives and 1.0" - portable drives with Compact Flash interface.

The PC-3000 Express coupled with the Data Extractor Express forms the PC-3000 Express Professional System that enables you to recover data from SATA, and PATA (IDE) HDDs. If you wish to repair these HDDs, you need only the PC-3000 Express, and for data recovery you need both the PC-3000 Express and the Data Extractor Express.



The PC-3000 Express hardware



The new powerful PC-3000 Express is a six-port tester-board which is inserted into a PCI-Express expansion slot. Six diagnostic ports are 4 SATA ports (data transfer speed up to 133 Mb/sec) and 2 PATA ports (speed up to 100 Mb/sec). The primary ports are SATA0 and SATA1 while SATA2 and SATA3 are switchable with the PATA ports (PATA0 and PATA1). You can connect four drives to the PC-3000 Express simultaneously - two SATA drives and two SATA or PATA drives, depending on your needs. Thus, you can work either with 4 SATA drives or 2 SATA and 2 PATA at the same time.

When developing the new PC-3000 Express system we used our “know-how”, all gained experience and requests from our users who work in data recovery. As a result, we have achieved a significant increase in performance and efficiency, making this professional product the best tool for the contemporary data recovery industry.


Processing modes:
  • SATA x4 — UDMA133, UDMA100, UDMA66, UDMA33, PIO4, PIO3, PIO2, PIO1, PIO0
  • PATA x2 - UDMA100, UDMA66, UDMA33, PIO4, PIO3, PIO2, PIO1, PIO0

All ports are separable and independent. Performance is maintained almost at the same level even when all ports have simultaneous loads. This has become possible because of efficient use of hardware buffering of the data transferred from the 4 UDMA ports through the PCI-Express 4-channel bus.



The performance for four connected HDD drives

The performance for four connected HDD drives



Power supply adapter:

A four-channel power supply adapter is located on the board controller and protects the HDDs from overvoltage and current overloading. In case of any of these events, the HDD power supply is switched off automatically.

In addition, every channel has a feedback circuit with a special management software that controls the supplying voltage values +5V, +12V and informs the user about any issues with the feed circuit.

Power adapter
Power adapter


Resource Management of the PC-3000 Express board

One of the most important new features of the PC-3000 Express is to allow for launching of the PC-3000 utility and the Data Extractor tasks as separate OS processes. The "PC-3000 Resource manager" software makes using the new PC-3000 Express very easy and effective. The "PC-3000 Resource manager" manages port and related process activity, controls the status of the ports, checks process conditions and kills processes when it is necessary.

Once a process is started it can use any number of PC-3000 Express ports. For instance, four processes can be launched for each port or two processes can be launched: the first one works with three ports and the second one only with one port and so on.


Port selection process in the PC-3000 Express

Port selection process in the PC-3000 Express


PC-3000 Express Resource Manager

PC-3000 Express Resource Manager


The PC-3000 Express Kit

  • PC-3000 Express controller
  • PC-USB-TERMINAL adapter
  • PC-2" adapter
  • SATA- micro SATA adapter
  • MX-SAFE adapter
  • PC-FUJ.SATA adapter
  • PC-QUANTUM adapter
  • PC-SAMSUNG adapter
  • PC-SEAG.SATA adapter
  • PC-SEAGATE adapter
  • PC-TOSH.SATA adapter
  • ATCS, ATDA probe unlock
  • USB 2.0 Defender cable
  • SATA RAID edition (80 cm) cable
  • UDMA80 (80 cm) flat able
  • IDC10 (30 cm) cable
  • MX-SAFE power cable
  • SATA HDD (80 cm) power cable
  • PATA HDD (70 cm) power cable
  • PATA-SATA (10 cm) power adapter
  • PC-3000 Express software, resource database
  • User manual


PC-3000 Express Kit drives adapters drives adapters drives adapters drives adapters drives adapters drives adapters drives adapters drives adapters drives adapters drives adapters PC-USB-TERMINAL 2 adapter PC-USB-TERMINAL 2 adapter USB2.0 Defender cabels USB2.0 Defender cabels Flat UDMA80 cabel MX-SAFE power cabel MX-SAFE adapter ATDS, ATDA probe SATA-micro SATA adapter PC-2 adapter IDC10 cabel PATA-SATA power adapter PATA-SATA power adapter PC-3000 Express controller HDD SATA power cabel SATA-RAID edition cabel HDD PATA power cabel

PC-3000 Express Kit

PC-USB-TERMINAL adapter
PC-USB-TERMINAL adapter


PC-FUJ.SATA, PC-QUANTUM, PC-SAMSUNG, PC-SEAG.SATA, PC-SEAGATE, PC-TOSH.SATA adapers
PC-FUJ.SATA, PC-QUANTUM, PC-SAMSUNG, PC-SEAG.SATA, PC-SEAGATE, PC-TOSH.SATA adapers

HDD 10 pin cable
HDD 10 pin cable



How to connect the PC-USB-TERMINAL adapter
How to connect the PC-USB-TERMINAL adapter


How to connect the PC-SEAG.SATA adapter

How to connect the PC-SEAG.SATA adapter

The PC-MX-SAFE adapter is intended for working with MAXTOR HDD in safe mode
The PC-MX-SAFE adapter is intended for working
with MAXTOR HDD in safe mode

The Probe unlock (ATCS, ATDA) intended for unlocking HITACHI/IBM HDD
The Probe unlock (ATCS, ATDA) intended for unlocking HITACHI/IBM HDD


The PC-2
The PC-2" adapter intended for connecting 2,5" and 1,8" HDD

PC micro SATA adapter
PC micro SATA adapter

SATA RAID edition (80 cm) cable
SATA RAID edition (80 cm) cable

UDMA80 (80 cm) flat cable
UDMA80 (80 cm) flat cable

SATA HDD (80 cm) power supply cable
SATA HDD (80 cm) power supply cable

PATA HDD (70 cm) power supply cable
PATA HDD (70 cm) power supply cable

PATA-SATA (10 cm) power adapter
PATA-SATA (10 cm) power adapter

USB2.0 Defender cable
USB2.0 Defender cable

The PC-3000 Express Software and User Manual
The PC-3000 Express Software and User Manual
